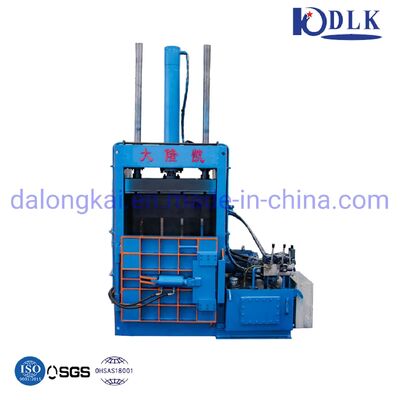

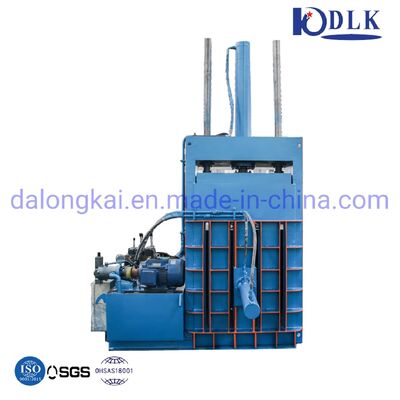

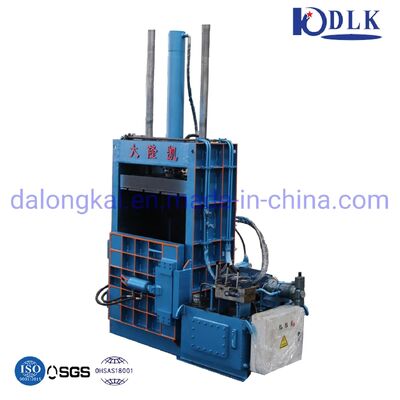

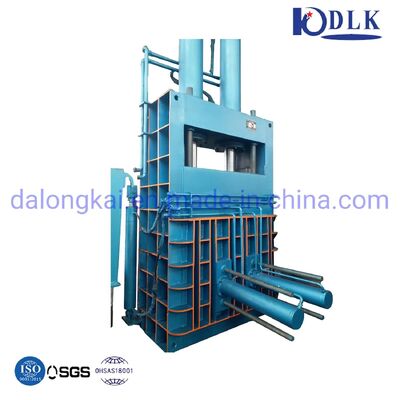

Y82-25 Hydraulic Vertical Paper Baling Machine with 250 Ton Force and Customizable Bale Size for Efficient Recycling
Produktdetails
| Modellnummer | Y82-25 | Automatisierungsgrad | Nicht Automatisierung |
|---|---|---|---|
| Computerisiert | Nicht computergestützte | Hauptzylinderkraft | 250 Tonne |
| Größe des Presskastens | 1080*780*1500 (mm) | Ballenabschnitt | 1080*780(mm) |
| Leistung | 15 ((KW) | BALE -Entladungsmethode | Taschenschieben |
| Produktionskapazität | 5 Sätze/Monat | Nennkraft | 250KN/25t |
| Kammergröße | 1080*580*1500 mm | Ölzylindertyp | Overhead-Typ |
| Dichtungsringe | Importiert | Anpassbare Größe | Ja |
| Druckdruckbereich | 15 Tonnen bis 400 Tonnen | ||
| Hervorheben | 250 Ton Force Paper Baler Machine,Hydraulic Pressure Drive Vertical Baler,Customizable Bale Size Hydraulic Vertical Paper Baling Machine |
||
Produkt-Beschreibung
Y82-25 Hydraulic Vertical Paper Baling Machine
Applications
- Compressing and baling woven bags, cloth, waste paper, and scrap paper for efficient transportation and storage
- Compressing and baling wool and wool balls
Key Features
- Baling press pressure ranges from 15 tons to 400 tons with complete specification options
- Hydraulic pressure drive with overhead type oil cylinder, operates without underground foundation
- All oil cylinders use imported sealing rings for reliable quality and extended service life
- Customizable package block size and compression chamber dimensions according to customer requirements
Technical Specifications
Model Number: Y82-250~Y82-1600
Certification: SGS
Place of Origin: Jiangsu P.R. China
Certification: SGS
Place of Origin: Jiangsu P.R. China
Commercial Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Payment Terms: 30% T/T In Advance
Supply Ability: 15 sets/month
Delivery Time: As per requirement
Packaging Details: Seaworthy packing
After-sales Service: Engineers available for overseas service
Price: Negotiable
Payment Terms: 30% T/T In Advance
Supply Ability: 15 sets/month
Delivery Time: As per requirement
Packaging Details: Seaworthy packing
After-sales Service: Engineers available for overseas service
Baler Specifications for Paper/Plastic
| No. | Model | Nominal Force | Chamber Size | Bale Section | Power | Bale Discharging Method |
|---|---|---|---|---|---|---|
| 1 | Y82-25T | 250KN/25t | 1080×580×1500 mm | 1080×580mm | 15KW | Turn-out |
| 2 | Y82-63T | 630KN/63t | 1080×750×1500 mm | 1080×750mm | 15KW | Turn-out |
| 3 | Y82-100T | 1000KN/100t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| 4 | Y82-160T | 1600KN/160t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| 5 | Y82-200 | 2000KN/200t | 1500×1000×1600 mm | 1500×1000mm | 37KW | Turn-out |
| 6 | Y82-250 | 2500KN/250t | 1500×1000×1600 mm | 1500×1000mm | 44KW | Turn-out or PLC control |
| 7 | Y82-315 | 3150KN/315t | 2200×1100×3000 mm | 2200×1100mm | 60KW | |
| 8 | Y82-400 | 4000KN/400t | 1500×1000×1600 mm | 1500×1000mm | 90KW |
Factory & Certification
Frequently Asked Questions
How can I get after-service support?
We provide one year guarantee and lifelong maintenance.
We will send you spare parts free of charge if problems are caused by manufacturing defects.
For user-caused issues, we provide spare parts at cost. Direct phone support is available for any problems.
Can I visit your factory before placing an order?
Yes, we welcome factory visits. Our factory address: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China.
We are located near Shanghai Pudong Airport and provide airport pickup service.
Hotel booking assistance is available.
Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years.
Export accounts for 50-60% of our business.
How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing:
- Third-party assessed with national patents and CE, ISO certifications for all equipment
- Factory inspections welcome - conveniently located near Shanghai Pudong Airport
- Specialized expertise in hydraulic balers and hydraulic shears
Is your price competitive?
We supply only high-quality machines and provide the best factory pricing based on superior products and comprehensive service support.
