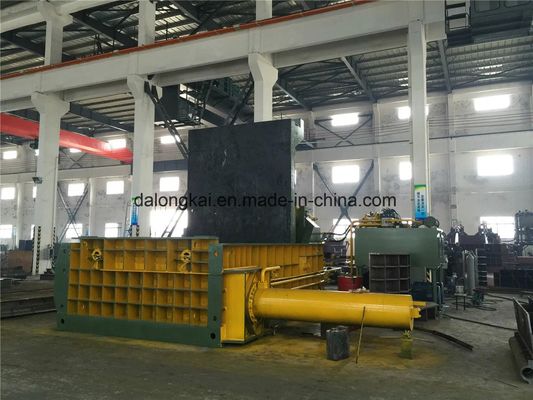

Y81K-315 Scrap Baler Machine with 4000x3500x1300mm Press Box and 700x700mm Bale Size for Non-Ferrous Metal Recycling
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Modellnummer | Y81K-315 | Haupt-Cyl.Force | 315 Tonne |
|---|---|---|---|
| Drücken Sie die Boxgröße | 4000*3500*1300 (mm) | Ballengröße | 700*700 (mm) |
| Ballengewicht | 800 ~ 1300 (kg) | Motorleistung | 135 (KW) |
| Produktionskapazität | 5 Sätze/Monat | Nominale Kraft | 125tons ~ 1200tons |
| Angetriebener Typ | Hydraulik | Leistungsbereich | 15 kW ~ 270 kW |
| Stromspannung | 21,5mpa | Automatische Note | Halbautomatisch |
| Extrusionskraft | 63 Tonnen bis 400 Tonnen | Produktivität | 4tons/Verschiebung auf 40tons/Verschiebung |
| Entladestypen | Umdrehen, herausschieben, weiterleiten, manuell anheben | ||
| Hervorheben | Y81K-315 Scrap Baler Machine,4000x3500x1300mm Hydraulic Metal Baler,700x700mm Scrap Metal Compress Machine |
||
Produkt-Beschreibung
Y81K-315 Scrap Non-Ferrous Metal Compress Machine
The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive materials into compact bales of different shapes (square, cylindrical, octagonal). This process significantly reduces transportation costs and improves logistics efficiency.
Key Applications
- Steel plants and metal recycling facilities
- Non-ferrous and ferrous metal refining industries
- Metal processing and reclamation operations
Technical Features
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No need for fixed foot screws - portable operation
- Diesel engine compatible for areas with unreliable power supply
- Extrusion force from 63 to 400 tons (10 available grades)
- Productivity range: 4-40 tons per shift
- Customizable compression chamber and bale dimensions
Product Specifications
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal compression |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Overseas engineer support available |
Technical Specifications
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81F-315 | 315 | 3500*3000*1300 | 700*700 | 600-1000 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
| Y81F-500 | 500 | 4000*3000*1300 | 700*700 | 900-1500 | 135 |
| Y81K-500 | 500 | 4000*3500*1300 | 700*700 | 900-1600 | 135 |
| Y81F-600 | 600 | 4000*3000*1400 | 700*700 | 1000-1700 | 180 |
| Y81K-600 | 600 | 4000*3000*1300 | 700*700 | 1100-1700 | 180 |
| Y81F-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81K-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81F-1000 | 1000 | 5000*3500*1500 | 700*700 | 1300-1900 | 225 |
| Y81K-1200 | 1200 | 5000*3500*1500 | 700*700 | 1400-2000 | 270 |
