Y81F-200 Hydraulic Scrap Metal Baler with 200 Ton Force 1800x1400x800mm Press Box and 300x300mm Bale Size for High Efficiency Recycling
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Modellnummer | Y81F-200 | Haupt-Cyl.Force | 200 Tonnen |
|---|---|---|---|
| Drücken Sie die Boxgröße | 1800*1400*800 (mm) | Ballengröße | 300*300 (mm) |
| Ballengewicht | 120 ~ 150 (kg) | Motorleistung | 44 (KW) |
| Power -Typ | Hydraulik | Produktionskapazität | 5 Sätze/Monat |
| Nominale Kraft | 125tons ~ 1200tons | Angetriebener Typ | Hydraulik |
| Stromspannung | 21,5mpa | Automatische Note | Halbautomatisch |
| Kompressionskammergröße | anpassbar | Ballenform | Quadrat, Zylinder, Achteck |
| Entladestypen | Umdrehen, herausschieben, weiterleiten, manuell anheben | ||
| Hervorheben | 200 Ton Hydraulic Scrap Metal Baler,1800x1400x800mm Scrap Baler Machine,300x300mm Metal Recycling Machine |
||
Produkt-Beschreibung

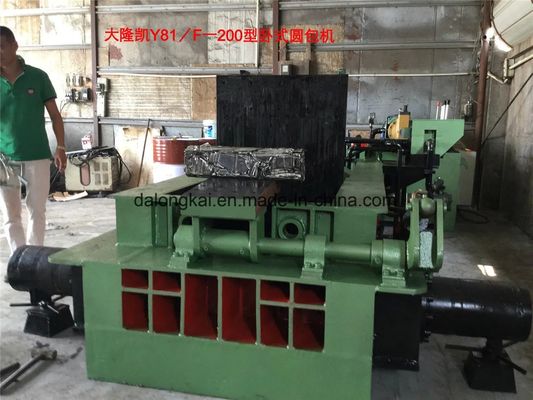

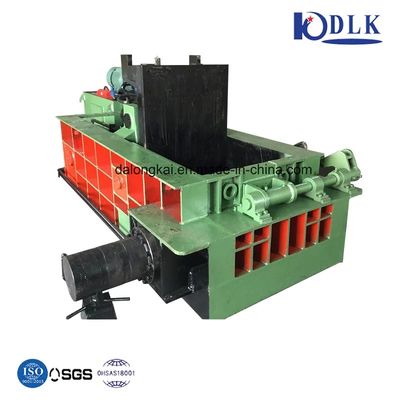

Y81F-200 Hydraulic Scrap Metal Baler Recycling Machine
Product Overview
The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales (square, cylindrical, or octagonal shapes) to reduce transportation costs and improve logistics efficiency.
Key Features
- Ideal for steel plants, recycling centers, and metal processing industries
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No need for fixed foot screws - portable operation
- Diesel engine compatible for areas without power supply
- Customizable compression chamber and bale dimensions
- Available in 10 models with extrusion force from 63 to 400 tons
- Productivity range: 4-40 tons per shift
Technical Specifications
| Attribute | Specification |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa (Customizable) |
| Color | Customizable |
| Automatic Grade | Semi-Automatic |
Model Specifications
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81F-315 | 315 | 3500*3000*1300 | 700*700 | 600-1000 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
| Y81F-500 | 500 | 4000*3000*1300 | 700*700 | 900-1500 | 135 |
| Y81K-500 | 500 | 4000*3500*1300 | 700*700 | 900-1600 | 135 |
| Y81F-600 | 600 | 4000*3000*1400 | 700*700 | 1000-1700 | 180 |
| Y81K-600 | 600 | 4000*3000*1300 | 700*700 | 1100-1700 | 180 |
| Y81F-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81K-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81F-1000 | 1000 | 5000*3500*1500 | 700*700 | 1300-1900 | 225 |
| Y81K-1200 | 1200 | 5000*3500*1500 | 700*700 | 1400-2000 | 270 |
Commercial Terms
| Term | Detail |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Product Images
Manufacturer Information
Jiangsu Dalongkai Technology Co., Ltd. is a professional manufacturer of large and medium-sized hydraulic machinery located in Jiangyin, China. With 20 years of experience, we specialize in metal hydraulic balers and shearing machines, serving materials regeneration, waste utilization, and circular economy industries worldwide.
Frequently Asked Questions
Q1: How can I get after-sales service?
A: We provide one year guarantee and lifelong maintenance. Spare parts are free if problems are caused by us, or charged for man-made issues. Direct phone support available.
Q2: Can I visit your factory before ordering?
A: Yes, we welcome factory visits. Our address: 29# Panlongshan Road, Jiangyin city, Jiangsu province (near Shanghai Pudong Airport). We provide airport pickup and hotel booking assistance.
Q3: Are you a factory or trading company?
A: We are a manufacturer with our own factory operating for 20 years, with 50-60% export proportion.
Q4: How can I trust your company?
A: We offer:
1. Third-party assessed national patents and CE, ISO certifications
2. Open factory inspection policy
3. Specialized in hydraulic balers and shears with 20 years expertise
Q5: Is your price competitive?
A: We provide high-quality machines at the best factory price, balancing superior product quality with excellent service.
