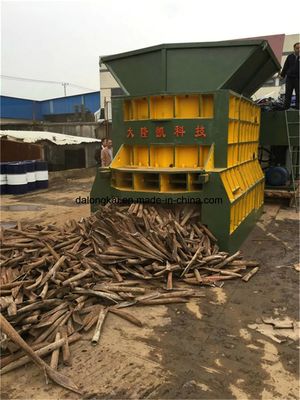

WS-500 Hydraulic Scrap Metal Shear Machine with Horizontal Structure for High Output Scrap Metal Processing

  • WS-500 Hydraulic Scrap Metal Shear Machine with Horizontal Structure for High Output Scrap Metal Processing
  • WS-500 Hydraulic Scrap Metal Shear Machine with Horizontal Structure for High Output Scrap Metal Processing
  • WS-500 Hydraulic Scrap Metal Shear Machine with Horizontal Structure for High Output Scrap Metal Processing
  • WS-500 Hydraulic Scrap Metal Shear Machine with Horizontal Structure for High Output Scrap Metal Processing
Zertifizierung ISO
Min Bestellmenge 1
Preis 75000

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Maximale Schnittkraft 5000kN Klingenlänge 1400 mm
Produktionsrate 6-8t/h Leistung 90 kW
Nominale Kraft 400ton Angetriebener Typ Hydraulisch
Maximale Länge 1600MM Stromspannung 21,5mpa
Automatische Note Automatisch Scherhöhe 300/420 mm
Modell Nr WS-500 Produktionskapazität 5 Sätze/Monat
Kontrolltyp SPS Betriebstyp Schaltfläche
Strukturtyp Horizontal
Hervorheben

Horizontal Structure Hydraulic Scrap Metal Shear

,

Scrap Metal Processing Gantry Shear

,

High Output Scrap Shear Machine
Hinterlass eine Nachricht
Produkt-Beschreibung
WS-500 Hydraulic Scrap Metal Shear Machine
The WS Horizontal Metal Shear is designed for economical scrap processing with easy operation and flexible transportation via a roll on/roll off system. Various models are available to suit different operational requirements.
Applications
Ideal for scrap metal processing, the HPM series of horizontal balers work with manual belting for efficient material handling.
Key Features
  • Horizontal structure allows for manual or automatic feeding with conveyor
  • PLC control and push-button operation ensure safe and reliable performance
  • High output capacity for efficient scrap processing
Specifications
Product Name WS Horizontal Metal Shear
Condition New
Application Scrap metal
Nominal Force 400Ton
Driven Type Hydraulic
Max. Length To Shear 1600mm
Voltage 21.5Mpa, Customized
Color Customized
Automatic Grade Automatic
Commercial Terms

Minimum Order Quantity: 1 Set

Price: Negotiable

Payment Terms: 30% T/T In Advance

Supply Ability: 5 sets/month

Delivery Time: As per your requirement

Packaging Details: Seaworthy packing

After-sales Service: Engineers available for overseas service

Technical Specifications
Model Max Cutting Force (KN) Blade Length (mm) Shear Height (mm) Production Rate (t/h) Power (KW)
WS-400 4000 1000 300/420 4-7 74
WS-500 5000 1400/1600 300/420 6-9 90
WS-630 6300 1400/1600 300/420 8-15 135
WS-800 8000 1600 420/500 12-18 180
WS-1000 10000 1600/2100 420/500 15-25 225
