WS-800 Hydraulic Gantry Shear with 8000kn Max Cutting Force 1600mm Blade Length and 10-17t/H Production Rate

  • WS-800 Hydraulic Gantry Shear with 8000kn Max Cutting Force 1600mm Blade Length and 10-17t/H Production Rate
  • WS-800 Hydraulic Gantry Shear with 8000kn Max Cutting Force 1600mm Blade Length and 10-17t/H Production Rate
  • WS-800 Hydraulic Gantry Shear with 8000kn Max Cutting Force 1600mm Blade Length and 10-17t/H Production Rate
  • WS-800 Hydraulic Gantry Shear with 8000kn Max Cutting Force 1600mm Blade Length and 10-17t/H Production Rate
  • WS-800 Hydraulic Gantry Shear with 8000kn Max Cutting Force 1600mm Blade Length and 10-17t/H Production Rate
  • WS-800 Hydraulic Gantry Shear with 8000kn Max Cutting Force 1600mm Blade Length and 10-17t/H Production Rate
Zertifizierung ISO, CE
Min Bestellmenge 1
Preis 125000

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Modell Nr. WS-800 Typ Altmetall-Reißwolf
Automatisierung Automatisch Maximale Schnittkraft 8000KN
Klingenlänge 1600MM Produktionsrate 10-17t/h
Leistung 90 kW Nominale Kraft 400ton
Angetriebener Typ Hydraulisch Maximale Länge 1600MM
Stromspannung 21,5mpa Automatische Note Automatisch
Scherhöhe 420/500 mm Produktionskapazität 5 Sätze/Monat
Farbe Maßgeschneidert
Hervorheben

8000kn Max Cutting Force Gantry Shear

,

1600mm Blade Length Hydraulic Shear

,

10-17t/H Production Rate Scrap Metal Shear
Hinterlass eine Nachricht
Produkt-Beschreibung
WS-800 Hydraulic Automatic Steel Shear Cutting Machine
Product Overview
The WS Horizontal Metal Shear is designed for economical scrap processing with easy operation and flexible transportation via a roll on/roll off system.
Key Applications
Ideal for scrap metal processing across various industrial applications.
Main Features
  • Horizontal structure allows for manual or automatic feeding with conveyor
  • PLC control with push-button operation for safe and reliable performance
  • High output capacity for efficient processing
Product Specifications
Product Name WS Horizontal Metal Shear
Condition New
Application Scrap metal
Nominal Force 400Ton
Driven Type Hydraulic
Max. Length To Shear 1600mm
Voltage 21.5Mpa, Customized
Color Customized
Automatic Grade Automatic
Technical Specifications
Model Max Cutting Force (KN) Blade Length (mm) Shear Height (mm) Production Rate (t/h) Power (KW)
WS-400 4000 1000 300/420 4-7 74
WS-500 5000 1400/1600 300/420 6-9 90
WS-630 6300 1400/1600 300/420 8-15 135
WS-800 8000 1600 420/500 12-18 180
WS-1000 10000 1600/2100 420/500 15-25 225
Commercial Terms
Minimum Order Quantity 1 Set
Price Negotiable
Payment Terms 30% T/T In Advance
Supply Ability 5 sets/month
Delivery Time As per requirement
Packaging Details Seaworthy packing
After-sales Service Engineers available for overseas service
Product Images

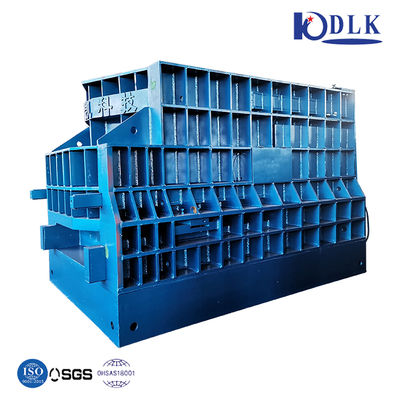

WS-800 Hydraulic Gantry Shear with 8000kn Max Cutting Force 1600mm Blade Length and 10-17t/H Production Rate 0

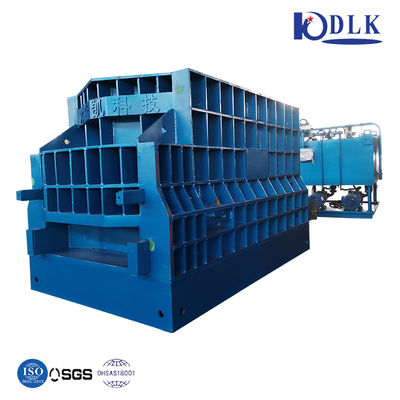

WS-800 Hydraulic Gantry Shear with 8000kn Max Cutting Force 1600mm Blade Length and 10-17t/H Production Rate 1

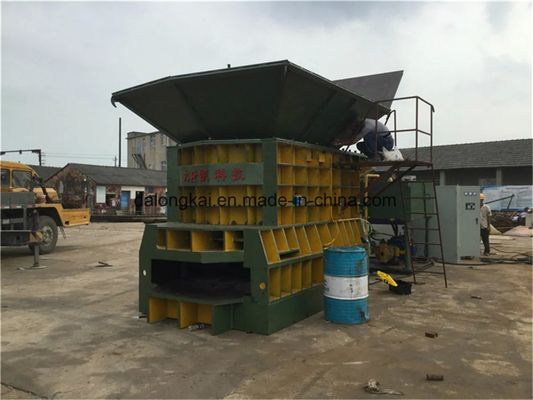

WS-800 Hydraulic Gantry Shear with 8000kn Max Cutting Force 1600mm Blade Length and 10-17t/H Production Rate 2
Factory

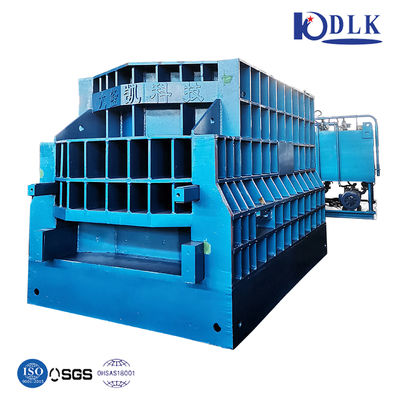

WS-800 Hydraulic Gantry Shear with 8000kn Max Cutting Force 1600mm Blade Length and 10-17t/H Production Rate 3
Workshop

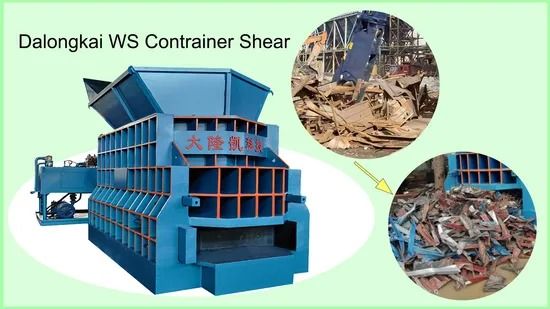

WS-800 Hydraulic Gantry Shear with 8000kn Max Cutting Force 1600mm Blade Length and 10-17t/H Production Rate 4
Packaging & Shipping

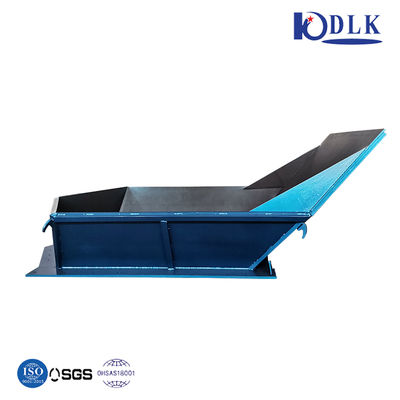

WS-800 Hydraulic Gantry Shear with 8000kn Max Cutting Force 1600mm Blade Length and 10-17t/H Production Rate 5
Certification
Frequently Asked Questions
Q1: How can I get the after-service?
A: We provide one year guarantee and lifelong maintenance. We will send you spare parts for free if problems are caused by us. For man-made problems, spare parts are available at cost. Any problem, you can call us directly.
Q2: Can I visit your factory before ordering?
A: Welcome to visit our factory at 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. We're near Shanghai Pudong Airport and can provide airport pickup and hotel booking service.
Q3: Are you a factory or trade company?
A: We are a manufacturer with our own factory for 20 years, with 50-60% export proportion.
Q4: How can I trust your company?
A: With 20 years of professional design, we provide suitable suggestions and competitive prices. Our credentials include:
  • National patents and CE, ISO certifications for all equipment
  • Open for factory inspection anytime (near Shanghai Pudong airport)
  • Specialized in hydraulic balers and hydraulic shears
Q5: Is your price competitive?
A: We only supply good quality machines and offer the best factory price based on superior products and service.
