WS-630 Customizable Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Processing

  • WS-630 Customizable Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Processing
  • WS-630 Customizable Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Processing
  • WS-630 Customizable Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Processing
  • WS-630 Customizable Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Processing
Zertifizierung ISO
Min Bestellmenge 1
Preis 82000

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Modell Nr. WS-630 Maximale Schnittkraft 6300kN
Klingenlänge 1400 mm Produktionsrate 8-12T/H
Leistung 135 kW Nominale Kraft 400ton
Angetriebener Typ Hydraulisch Max. Scherlänge 1600MM
Stromspannung 21,5mpa Automatische Note Automatisch
Scherhöhe 300/420 Produktionskapazität 5 Sätze/Monat
Kontrolltyp SPS Betriebstyp Schaltfläche
Strukturtyp Horizontal
Hervorheben

Customizable Gantry Shear

,

6300kn Max Cutting Force Gantry Shear

,

1400mm Blade Length Gantry Shear
Hinterlass eine Nachricht
Produkt-Beschreibung

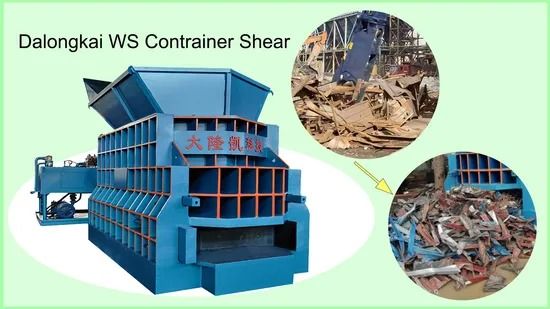

WS-630 Horizontal Automatic Metal Cutting Machine
The WS Horizontal Metal Shear is designed for efficient scrap metal processing, featuring easy operation and flexible transportation with a roll on/roll off system. Various models are available to suit different production requirements.
Key Applications
  • Economical scrap metal processing and recycling
  • Ideal for metal fabrication and waste management operations
Product Features
  • Horizontal structure: Supports both manual feeding and automatic feeding with conveyor
  • PLC control system: Push-button operation ensures safe and reliable performance
  • High production output: Designed for maximum efficiency in metal cutting operations
Product Specifications
Product Name WS Horizontal Metal Shear
Condition New
Application Scrap metal processing
Nominal Force 400Ton
Driven Type Hydraulic
Max. Length To Shear 1600mm
Voltage 21.5Mpa, Customized
Color Customized
Automatic Grade Automatic
Commercial Terms
Minimum Order Quantity 1 Set
Price Negotiable
Payment Terms 30% T/T In Advance
Supply Ability 5 sets/month
Delivery Time As per customer requirements
Packaging Details Seaworthy packing
After-sales Service Engineers available for overseas service
Technical Specifications
Model Max Cutting Force (KN) Blade Length (mm) Shear Height (mm) Production Rate (t/h) Power (KW)
WS-400 4000 1000 300/420 4-7 74
WS-500 5000 1400/1600 300/420 6-9 90
WS-630 6300 1400/1600 300/420 8-15 135
WS-800 8000 1600 420/500 12-18 180
WS-1000 10000 1600/2100 420/500 15-25 225
