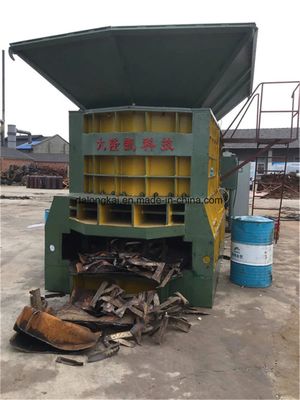

WS-500 Hydraulic Driven Gantry Shear with 6-8t/H Production Rate and 90kw Power for Scrap Metal Processing

  • WS-500 Hydraulic Driven Gantry Shear with 6-8t/H Production Rate and 90kw Power for Scrap Metal Processing
  • WS-500 Hydraulic Driven Gantry Shear with 6-8t/H Production Rate and 90kw Power for Scrap Metal Processing
  • WS-500 Hydraulic Driven Gantry Shear with 6-8t/H Production Rate and 90kw Power for Scrap Metal Processing
  • WS-500 Hydraulic Driven Gantry Shear with 6-8t/H Production Rate and 90kw Power for Scrap Metal Processing
Zertifizierung ISO
Min Bestellmenge 1
Preis 75000

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Maximale Schnittkraft 5000kN Klingenlänge 1400 mm
Produktionsrate 6-8t/h Leistung 90 kW
Nominale Kraft 400ton Angetriebener Typ Hydraulisch
Max. Scherlänge 1600MM Stromspannung 21,5mpa
Automatische Note Automatisch Scherhöhe 300/420 mm
Modell Nr. WS-500 Produktionskapazität 5 Sätze/Monat
Kontrollsystem SPS Strukturtyp Horizontal
Betriebstyp Schaltfläche
Hervorheben

Hydraulic Driven Gantry Shear

,

6-8t/H Production Rate Gantry Shear

,

90kw Power Hydraulic Scrap Metal Shear
Hinterlass eine Nachricht
Produkt-Beschreibung

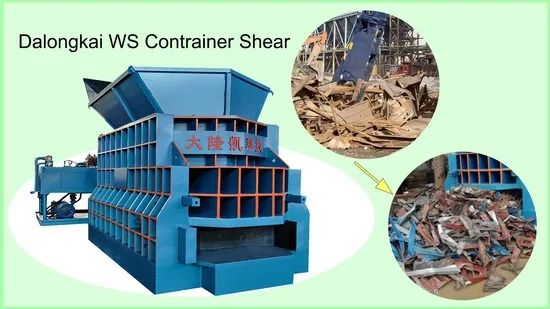

WS-500 Hydraulic Scrap Metal Automatic Shear Machine
The WS Horizontal Metal Shear is designed for economical scrap metal processing, featuring easy operation and flexible transportation with a roll on/roll off system. Various models are available to suit different operational requirements.
Key Features
  • Horizontal structure: Supports both manual feeding and automatic feeding with conveyor
  • PLC control system: Push-button operation ensures safe and reliable performance
  • High output capacity: Designed for efficient scrap processing
Product Specifications
Product Name WS Horizontal Metal Shear
Condition New
Application Scrap metal processing
Nominal Force 400Ton
Driven Type Hydraulic
Max. Length To Shear 1600mm
Voltage 21.5Mpa, Customized
Color Customized
Automatic Grade Automatic
Commercial Terms
Minimum Order Quantity 1 Set
Price Negotiable
Payment Terms 30% T/T In Advance
Supply Ability 5 sets/month
Delivery Time As per requirement
Packaging Details Seaworthy packing
After-sales Service Engineers available for overseas service
Technical Specifications
Model Max Cutting Force (KN) Blade Length (mm) Shear Height (mm) Production Rate (t/h) Power (KW)
WS-400 4000 1000 300/420 4-7 74
WS-500 5000 1400/1600 300/420 6-9 90
WS-630 6300 1400/1600 300/420 8-15 135
WS-800 8000 1600 420/500 12-18 180
WS-1000 10000 1600/2100 420/500 15-25 225
