Q15A-4000 Gantry Plate Shear Machine with 400 Ton Max Shear Force 800mm Blade Length and 35*700mm Max Cutting Specifications

  • Q15A-4000 Gantry Plate Shear Machine with 400 Ton Max Shear Force 800mm Blade Length and 35*700mm Max Cutting Specifications
  • Q15A-4000 Gantry Plate Shear Machine with 400 Ton Max Shear Force 800mm Blade Length and 35*700mm Max Cutting Specifications
  • Q15A-4000 Gantry Plate Shear Machine with 400 Ton Max Shear Force 800mm Blade Length and 35*700mm Max Cutting Specifications
  • Q15A-4000 Gantry Plate Shear Machine with 400 Ton Max Shear Force 800mm Blade Length and 35*700mm Max Cutting Specifications
  • Q15A-4000 Gantry Plate Shear Machine with 400 Ton Max Shear Force 800mm Blade Length and 35*700mm Max Cutting Specifications
  • Q15A-4000 Gantry Plate Shear Machine with 400 Ton Max Shear Force 800mm Blade Length and 35*700mm Max Cutting Specifications
Zertifizierung ISO
Min Bestellmenge 1
Preis 14000

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Maximale Scherkraft 400 (Tonne) Klingenlänge 800 (mm)
Maximaler Schneiden 35*700 (mm) Scherfrequenz 4–7 (Zeiten/Minute)
Motorleistung 2*22 (Kw) Nennkraft 120 Tonnen ~ 315 Tonnen
Angetriebener Typ Hydraulisch Stromspannung 21,5mpa
Automatische Note Halbautomatisch Scherkraft 120-500 (Tonne)
Maximales Material 18-40*500-1000 (Millimeter) Leistungsbereich 15 kW ~ 44 kW
Produktionskapazität 10 Sätze/Monat Modellvarianten Q15A-1200 bis Q15B-3150
Motorkonfiguration Einfach/doppelt
Hervorheben

400 Ton Max Shear Force Gantry Plate Shear Machine

,

800mm Blade Length Gantry Shear

,

35*700mm Max Cutting Specifications Hydraulic Shear Machine
Hinterlass eine Nachricht
Produkt-Beschreibung
Q15A-4000 Gantry Plate Shear Machine
Product Overview
This hydraulic gantry plate shear machine is designed for processing various metal plates, cutting them into materials of different specifications. It effectively replaces flame cutting methods while significantly reducing operational costs.
Technical Specifications
Model Number Q15-1200~Q15-3150
Certification SGS
Place of Origin Jiangsu P.R. China
Product Name Gantry Plate Shear
Condition New
Application Scrap Metal Processing
Nominal Force 120Tons ~315Tons
Driven Type Hydraulic
Power 15KW~44kW
Voltage 21.5Mpa, Customized
Color Customized
Automatic Grade Semi-Automatic
Model Specifications
Model Shearing Force (ton) Blade Length (mm) Max. Cutting Material (mm) Shearing Frequency (times/min) Motor (KW)
Q15A-1200 120 600 18*500 4-7 15
Q15A-1600 160 600 20*500 4-7 18.5
Q15A-2000I 200 600/800 25*500 4-7 22
Q15A-2500I 250 600 30*500 4-7 22
Q15A-2500II 250 800 30*700 4-7 2*15
Q15A-3150 315 800 30*700 4-7 45
Q15A-4000 400 800 35*700 4-7 2*22
Q15A-5000 500 900 40*800 4-7 2*45
Q15B-1600 160 1200 16/12*1000 4-7 18.5
Q15B-2000 200 1200 18/16*1000 4-7 22
Q15B-2500I 250 1200/1600 25/20*1000 4-7 2*18.5
Q15B-3150 315 1200 30/25*1000 4-7 2*18.5
Product Images

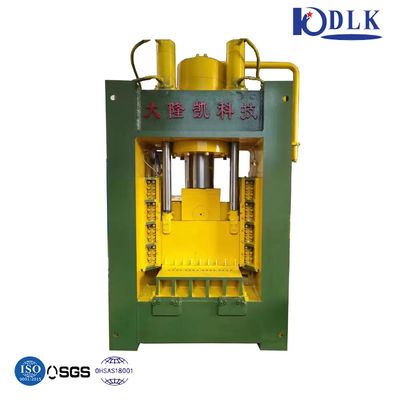

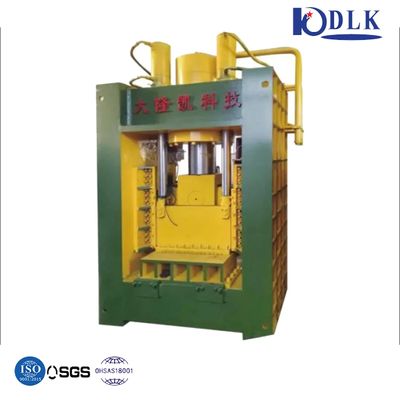

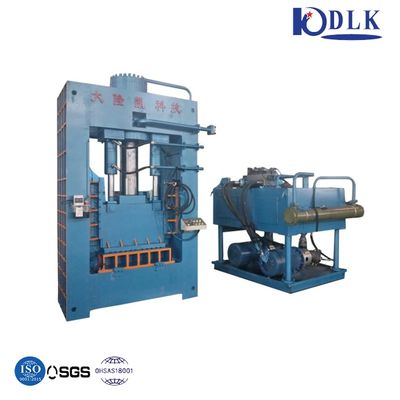

Q15A-4000 Gantry Plate Shear Machine with 400 Ton Max Shear Force 800mm Blade Length and 35*700mm Max Cutting Specifications 0 Q15A-4000 Gantry Plate Shear Machine with 400 Ton Max Shear Force 800mm Blade Length and 35*700mm Max Cutting Specifications 1 Q15A-4000 Gantry Plate Shear Machine with 400 Ton Max Shear Force 800mm Blade Length and 35*700mm Max Cutting Specifications 2 Q15A-4000 Gantry Plate Shear Machine with 400 Ton Max Shear Force 800mm Blade Length and 35*700mm Max Cutting Specifications 3
Commercial Terms
Minimum Order Quantity 1 Set
Price Negotiable
Payment Terms 30% T/T In Advance
Supply Ability 10 sets/month
Delivery Time As per requirement
Packaging Details Seaworthy packing
After-sales Service Engineers available for overseas service
Manufacturer Information
Jiangsu Dalongkai Technology Co., Ltd. has been a trusted name in the waste recycling equipment industry for over a decade. As a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products include shear balers, scrap balers, scrap shears, and recycling cranes.
In addition to scrap metal processing equipment, we also supply horizontal and vertical balers for compacting plastic, paper, cardboard, straw, textile, and other types of waste.
Our Dalongkai brand has received critical acclaim both domestically and overseas. We have successfully passed TUV and ISO9001 Quality Management System certifications and are currently obtaining European standards such as CE and UL approval.
Q15A-4000 Gantry Plate Shear Machine with 400 Ton Max Shear Force 800mm Blade Length and 35*700mm Max Cutting Specifications 4 Q15A-4000 Gantry Plate Shear Machine with 400 Ton Max Shear Force 800mm Blade Length and 35*700mm Max Cutting Specifications 5 Q15A-4000 Gantry Plate Shear Machine with 400 Ton Max Shear Force 800mm Blade Length and 35*700mm Max Cutting Specifications 6
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send spare parts free of charge if problems are caused by manufacturing defects. For user-caused issues, we provide spare parts at cost. Direct phone support is available for any problems.
Q2: Can I visit your factory before ordering?
Yes, we welcome factory visits. Our address: 29# Panlongshan Road, Jiangyin City, Jiangsu Province, 214429, P.R China. We are located near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with 50-60% of production for export.
Q4: How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. We hold national patents, CE, and ISO certifications for all equipment. Factory inspections are welcome, and we specialize in hydraulic balers and hydraulic shears.
Q5: Is your price competitive?
We supply only high-quality machines and provide the best factory price based on superior products and comprehensive service.
